Control API: drive bots from outside (scripts and AI)

After this article you can operate FlowBotCommander from outside: from PowerShell, from a program of your own, or from an AI assistant that starts and stops your bots via "function calling". No programming knowledge needed — the examples below can be copied as they are.

What the control API is

The app contains a small HTTP server. It runs only on your computer (address 127.0.0.1), is off by default and lets nobody in without your token. Through this interface a script can

• query the state (running, paused, which bot is loaded),
• follow the log,
• list the bots in the bots folder,
• load, start, pause and stop a bot.

What it deliberately cannot do: edit bots, set variables or create nodes — that stays in the editor. The panic hotkey (Pause key) stops the bot at any time, whatever the API is doing.

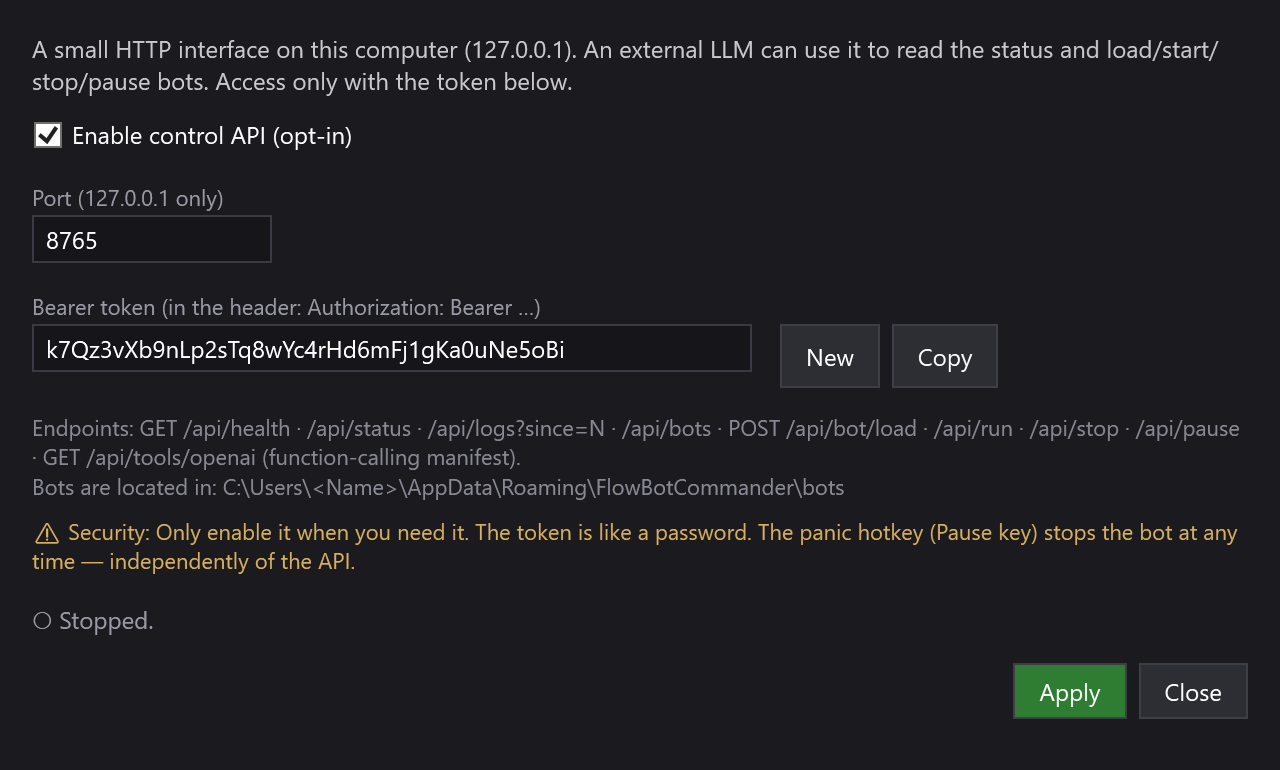

Step 1 — Switch it on and copy the token

1. Open the menu Tools → Control API….
2. Tick Enable control API (opt-in).
3. Leave the port (8765) or change it if another program uses it.
4. Click Copy next to the token — you need it in a moment. New creates a fresh token; the old one stops working.
5. Apply. The bottom shows "● Running on http://127.0.0.1:8765" and the log gets a 🌐 line with the address.

The setting is saved: the next time the app starts, the API runs again until you remove the tick. The token is stored encrypted on your computer — never inside a bot and never on our server.

Step 2 — Put bots into the bots folder

The API lists and loads bots only from the folder %AppData%\FlowBotCommander\bots. To get there: Win+R, type %AppData%\FlowBotCommander\bots, Enter (create the folder the first time). Save your bots there with File → Save as… — each one is called name.bot.json.

Step 3 — The first request

Open PowerShell and insert your token:

$token = "YOUR-TOKEN-HERE"
$h = @{ Authorization = "Bearer $token" }

Invoke-RestMethod http://127.0.0.1:8765/api/health              # works without a token
Invoke-RestMethod -Headers $h http://127.0.0.1:8765/api/status  # everything else needs the token

The answer to /api/status looks like this:

{ "running": false, "paused": false, "nodeCount": 6, "logCount": 12, "loadedBot": "clicker-heroes-komplett.bot.json" }

Step 4 — Load, start, pause, stop a bot

# Which bots are there?
Invoke-RestMethod -Headers $h http://127.0.0.1:8765/api/bots

# Load a bot — name with or without .bot.json, part of the name is enough
Invoke-RestMethod -Headers $h -Method Post -ContentType "application/json" `
    -Body '{ "name": "clicker-heroes-komplett" }' http://127.0.0.1:8765/api/bot/load

# Start
Invoke-RestMethod -Headers $h -Method Post http://127.0.0.1:8765/api/run

# Pause and resume
Invoke-RestMethod -Headers $h -Method Post -ContentType "application/json" `
    -Body '{ "paused": true }'  http://127.0.0.1:8765/api/pause
Invoke-RestMethod -Headers $h -Method Post -ContentType "application/json" `
    -Body '{ "paused": false }' http://127.0.0.1:8765/api/pause

# Stop
Invoke-RestMethod -Headers $h -Method Post http://127.0.0.1:8765/api/stop

Every action answers with { "ok": true, "message": "…" } or { "ok": false, "message": "reason" } — for example "Läuft bereits." (already running) or "Bot 'xyz' nicht gefunden." (bot not found). The messages are currently in German.

Following the log

/api/logs?since=N returns the log lines from line N on (0 = all). Remember how many lines you have read and ask from there next time — that way you only get what is new:

$lines = Invoke-RestMethod -Headers $h "http://127.0.0.1:8765/api/logs?since=0"
$lines.Count        # e.g. 12
Invoke-RestMethod -Headers $h "http://127.0.0.1:8765/api/logs?since=12"   # only the new lines

All endpoints at a glance

Connecting an AI assistant

GET /api/tools/openai returns a ready-made tool list in OpenAI format ("tools"). It describes every function — get_status, get_logs, list_bots, load_bot, run_bot, stop_bot, pause_bot — so that a language model calls them correctly on its own. The usual setup:

1. Your script fetches the manifest and hands it to the AI service as tools.
2. You tell the AI: "Start the bot clicker-heroes-komplett and tell me when an error shows up in the log."
3. The AI answers with a tool call (e.g. run_bot); your script performs the matching HTTP request and returns the result.

The app itself calls no AI service — the bridge between AI and API is your script. That way your token stays on your computer.

Security

• The API is reachable only from your own computer. Other devices on the network cannot get in — this is intentional and cannot be changed.
• The token is like a password: do not share it, do not put it into bots or screenshots. If in doubt click New and Apply.
• Switch the API off when you do not need it.
• Pause always stops the bot — even in the middle of an API action.
